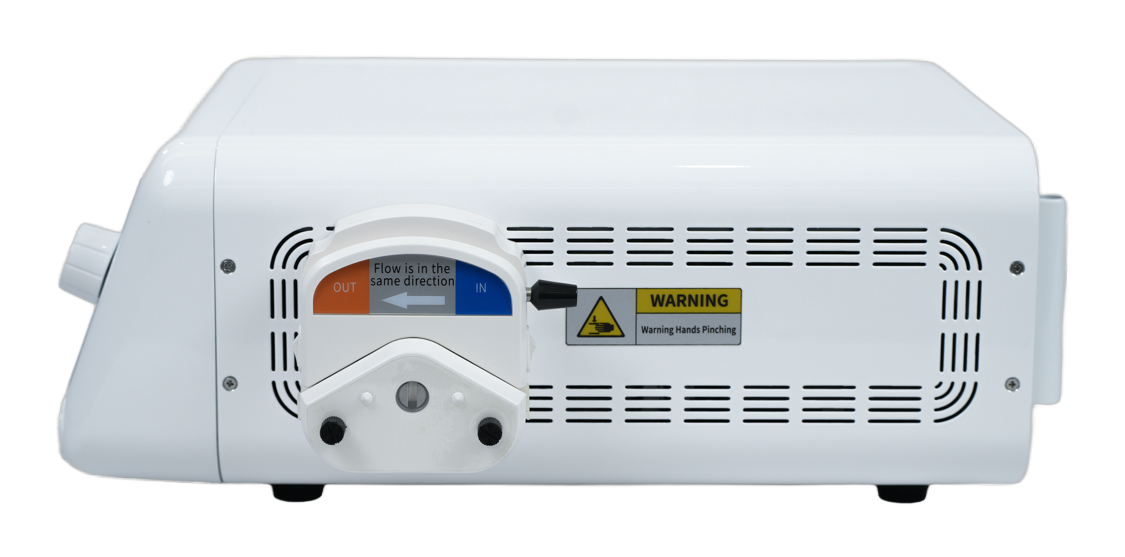

Canyon MaxBlate KY-2000A microwave ablation generator (100 W)
100 W microwave ablation generator for compact interventional suites.
Authorized distributor for Canyon
- Output powerUp to 100 W
- Frequency2450 MHz
- Display7-inch interactive touchscreen
Availability: Available to order. Typical lead time 4 to 8 weeks.
- CE-marked Internationally certified OEM devices
- Authorized distributor Genuine systems via official channels
- Installation & training Commissioned and trained on-site
- Nationwide service Lahore, Islamabad and Karachi
Specifications
| Specification | Detail |
|---|---|
| Maximum output power | 100 W |
| Operating frequency | 2450 MHz |
| Control interface | 7-inch interactive touchscreen (power, time, temperature) |
| Antenna cooling | Internal water-cooled antennas |
| Temperature monitoring | Real-time tip temperature and cooling control |

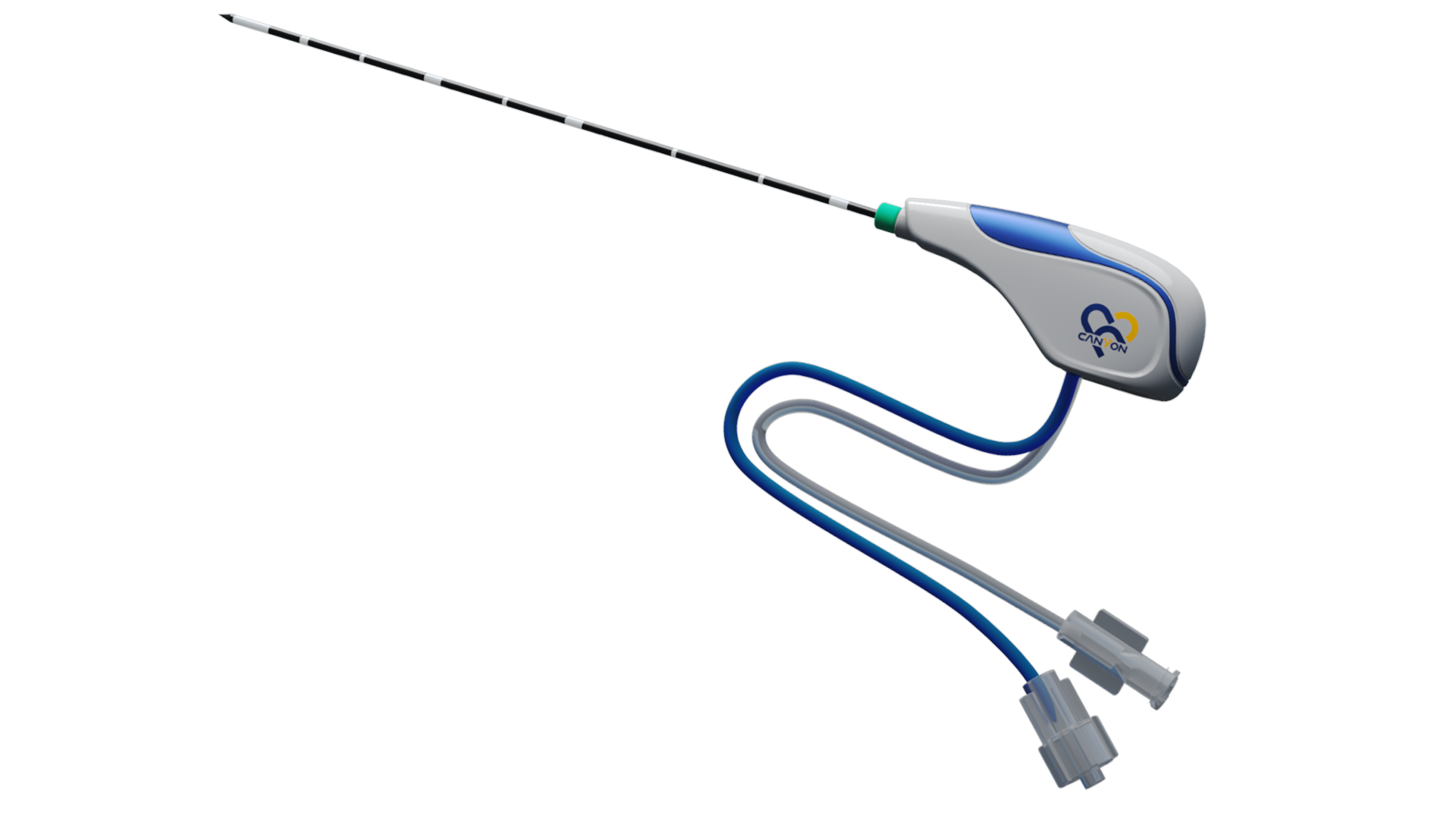

| Compatible antennas | XphereTip, ThyTip, SureTip |
| Form factor | Portable benchtop generator |
| Control technology | Adaptive Closed Loop Control (ACLC) |
Indications and applications
- Liver tumour ablation
- Lung tumour ablation

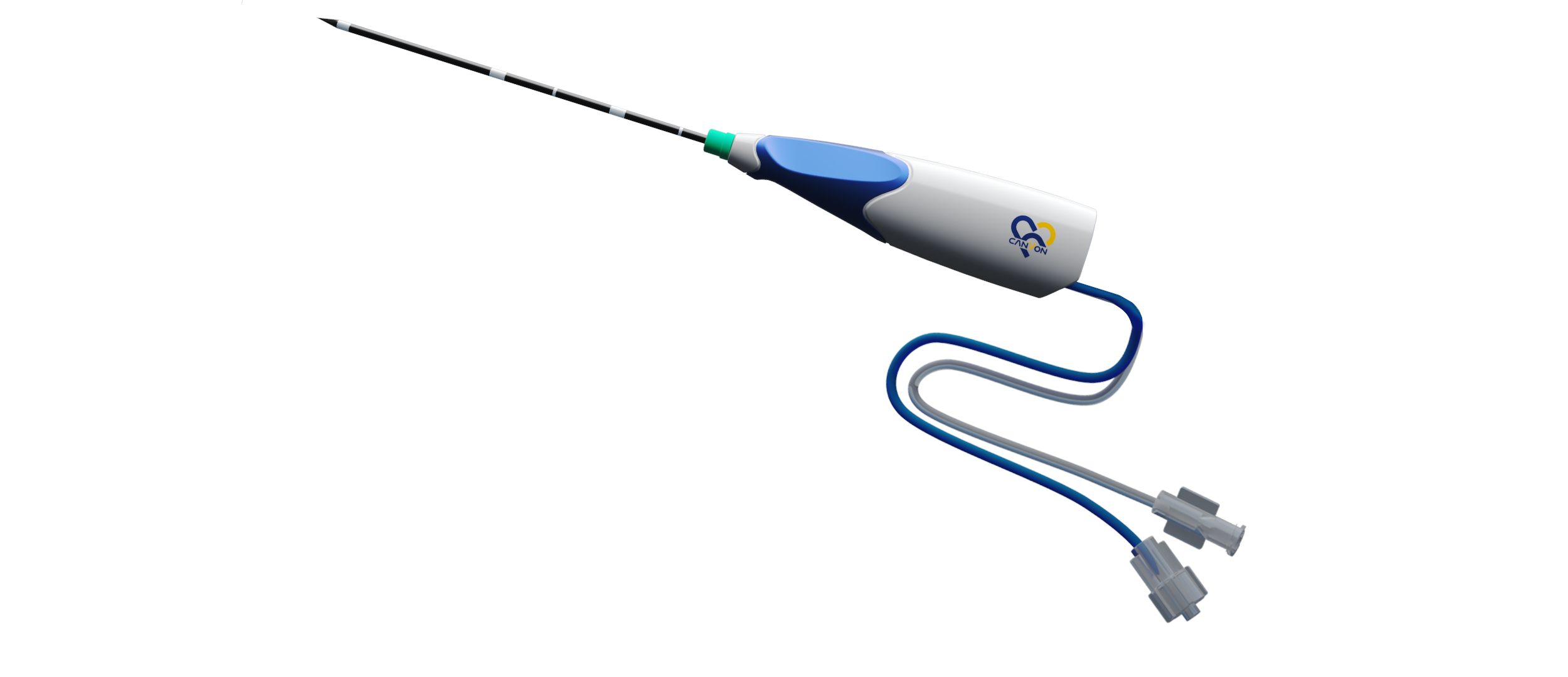

- Thyroid nodule ablation with ThyTip antenna
Frequently asked questions
How is the KY-2000A different from the KY-2100A?
The KY-2000A delivers up to 100 W and the KY-2100A up to 150 W. Both share the same touchscreen control and cooled-antenna platform.
Can it be used for thyroid nodules?
Yes, paired with the ThyTip antenna. Ask our team for the thyroid ablation brochure.
Do you provide service after installation?
Yes, nationwide service, preventive maintenance and consumables resupply.
